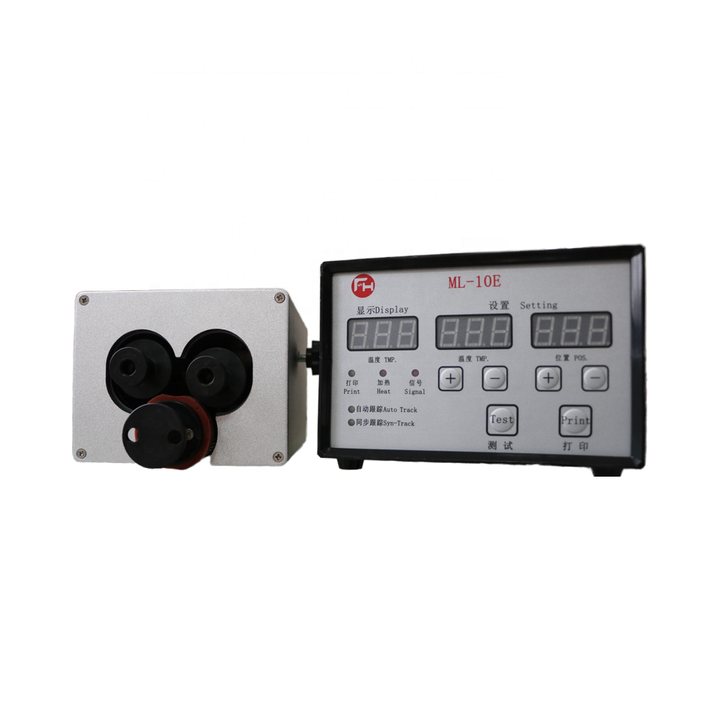

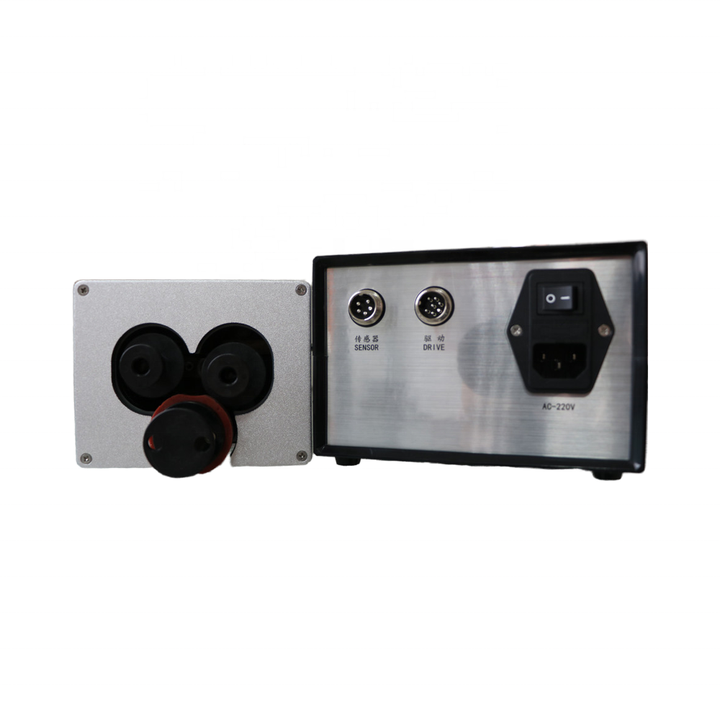

High Efficiency Double Ink Roll Coder(ML-10E)

ML-10E Hot Ink Roll Coder(Double Rolls) is featured by patent design of double ink rolls. This design has reduced much trouble in frequently changing rolls during operation, hence improving efficiency.

Inquiry
Product details

Product Features

1. Printing Method

Automatically printing with solid ink rolls.

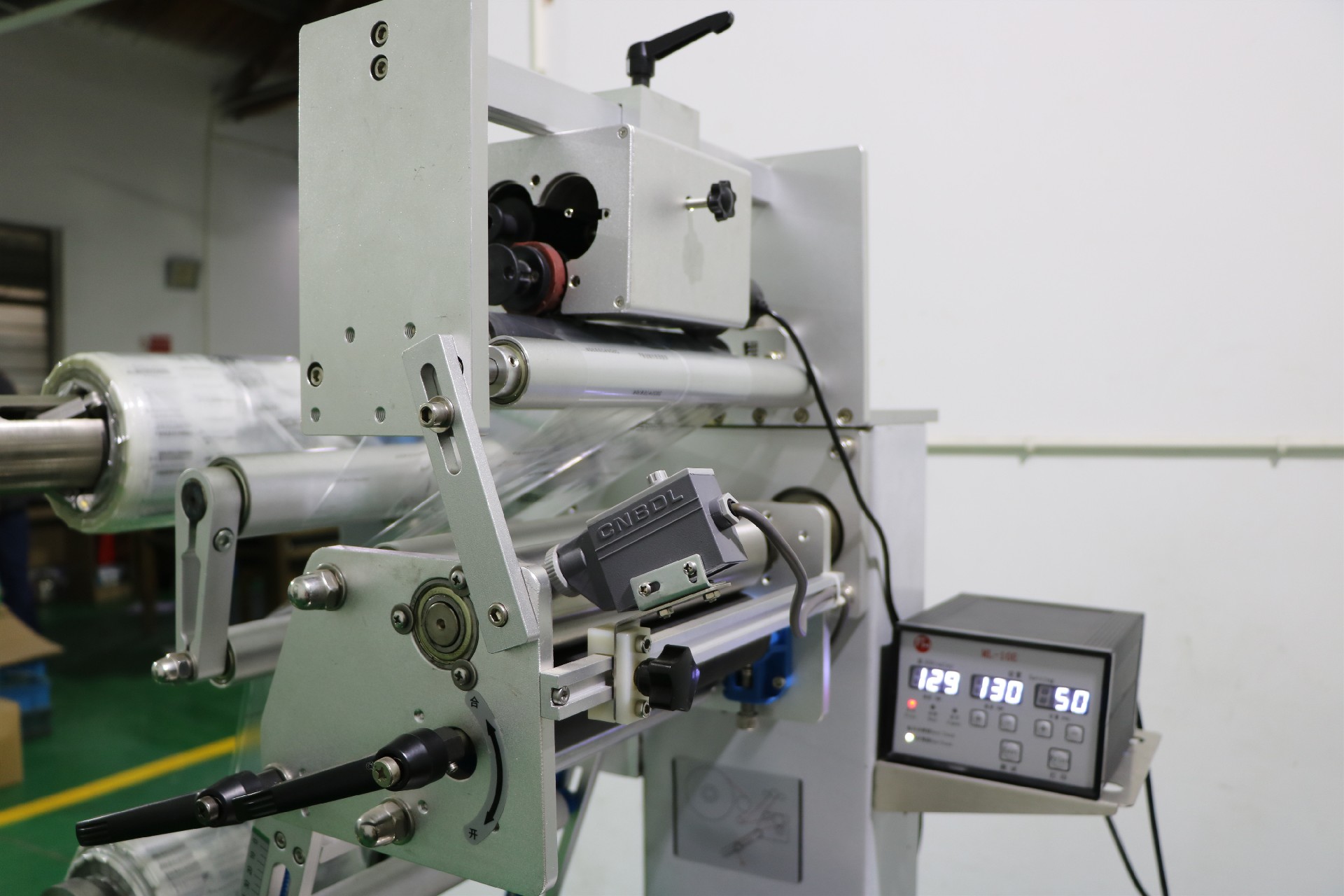

Considering various structures of packing machines, Hot Ink Roll Coders should be installed at the position which will not affect the machine operation based on the site condition, and the mounting bracket can be customized according to customers’ requirements.



2. Features

Double-roll design,reducing trouble in frequently changing rolls, hence improving efficiency.

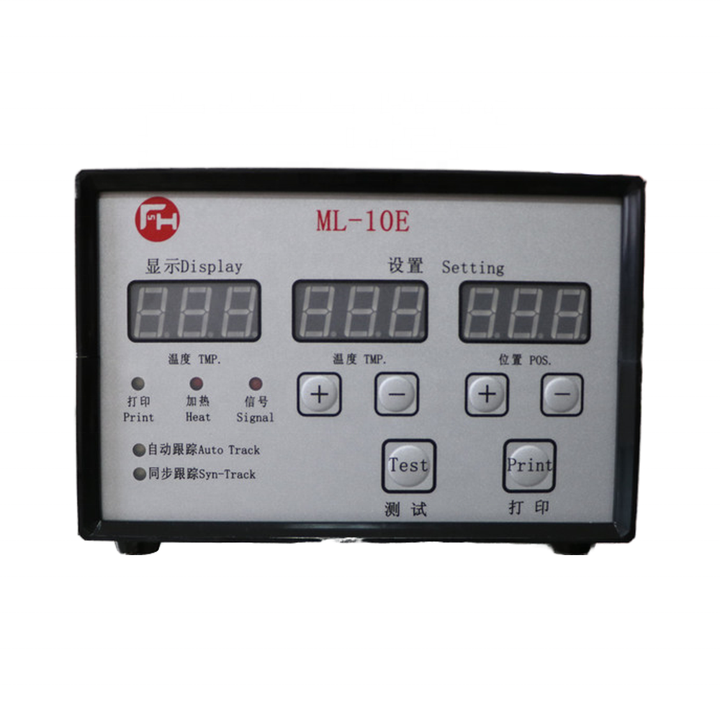

Industrial-grade panel with touch buttons guarantees smooth panel operation for more than 300,000 times.

Simple & Clear operation interface enables fast-learning process for customers.

Supporting various operating modes, such as NPN ,PNP, PLC etc.

Supporting different printing modes, such as automatic signal tracking and encoder modes.

Compact size, easy installation and simple operation.

It is specially designed for automatic feeding lines, suitable for applications of frequent shut-downs and fast speed changes.

Product parameters

² Printing Area                Axial≤40mm (perpendicular to feeding direction)

                                               Radial≤60mm (parallel to feeding direction)

² Printing Lines               T-typeAxial≤13 linesmax 20 characters per line

                                                                       R-typeRadial≤10 linesmax 13 characters per line

² Type Sizes                   T-type1.5 mm,2.0 mm,2.5 mm,3.0 mm(W) ×3.5mm(H)

                                               R-type3.5mm(W)×3.5,4.5,5.5mm(H)(Customized)

² Printing Speed                   ≤300times/min

² Linear Speed                     ≤35m/min

² Pouch Length                    ≥38mm(4-up printer)

                                              ≥75mm(2-up printer)

² Ink Rolls                    φ36×35mm(Standard size)

² Electricity                  AC220±10V,  50/60Hz

² Power                      130W,2Afuse

² Working Temperature      4℃-40℃

² Relative Humidity           10%-95%

² Weight                      Printing Unit: 2.0kg,   Controller: 1.0kg

² Outline Dimension         Printing Unit126mm×100mm×172mm(L×W×H)

         Controller161mm×180mm×105mm(L×W×H)


ML-10E is featured by patent design of double ink rolls, which has substantially increased the working efficiency during packing.

When one ink roll is used up, we can easily switch to the other one by switching mechanism.

This design has reduced the time consumed in frequently changing ink rolls, and we have passed CE Certification.
