High Efficiency Single Ink Roll Coder(ML-10Y)

Inquiry
Product details

Product Features

1. Printing Method

Automatically printing with solid ink rolls.

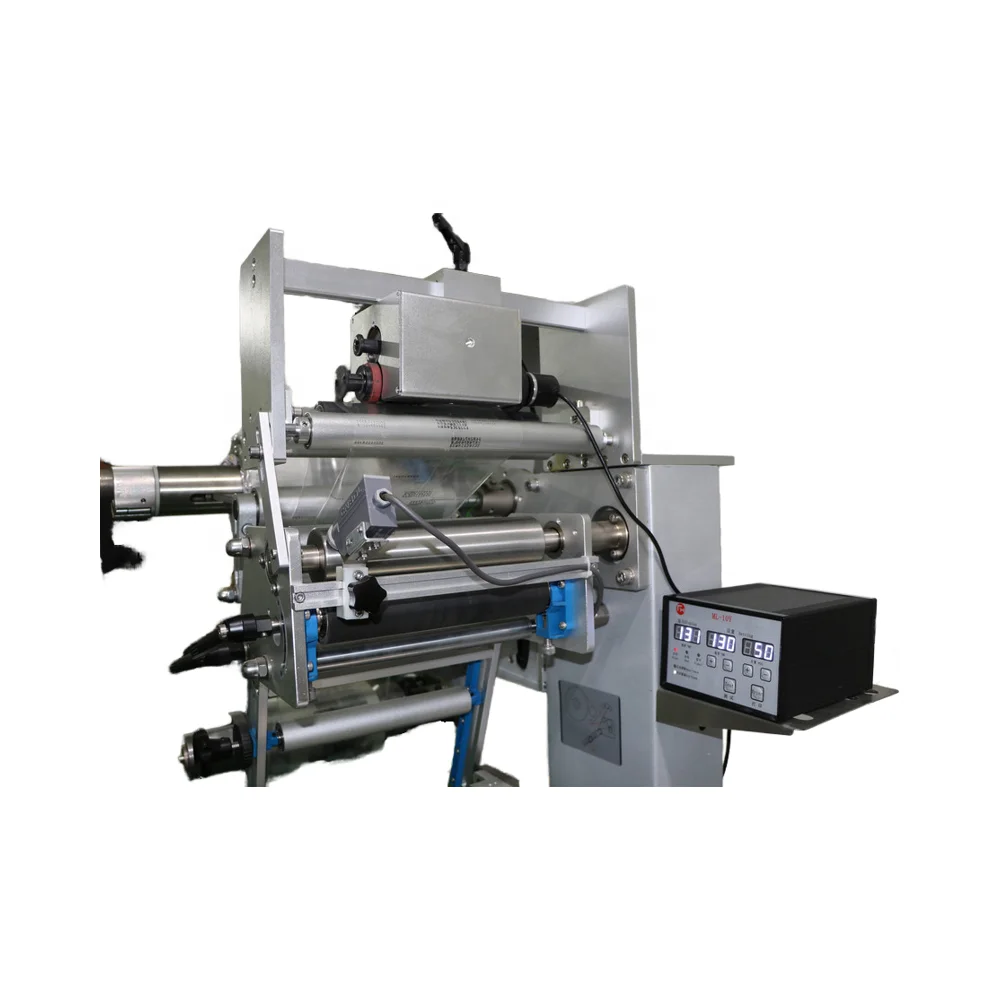

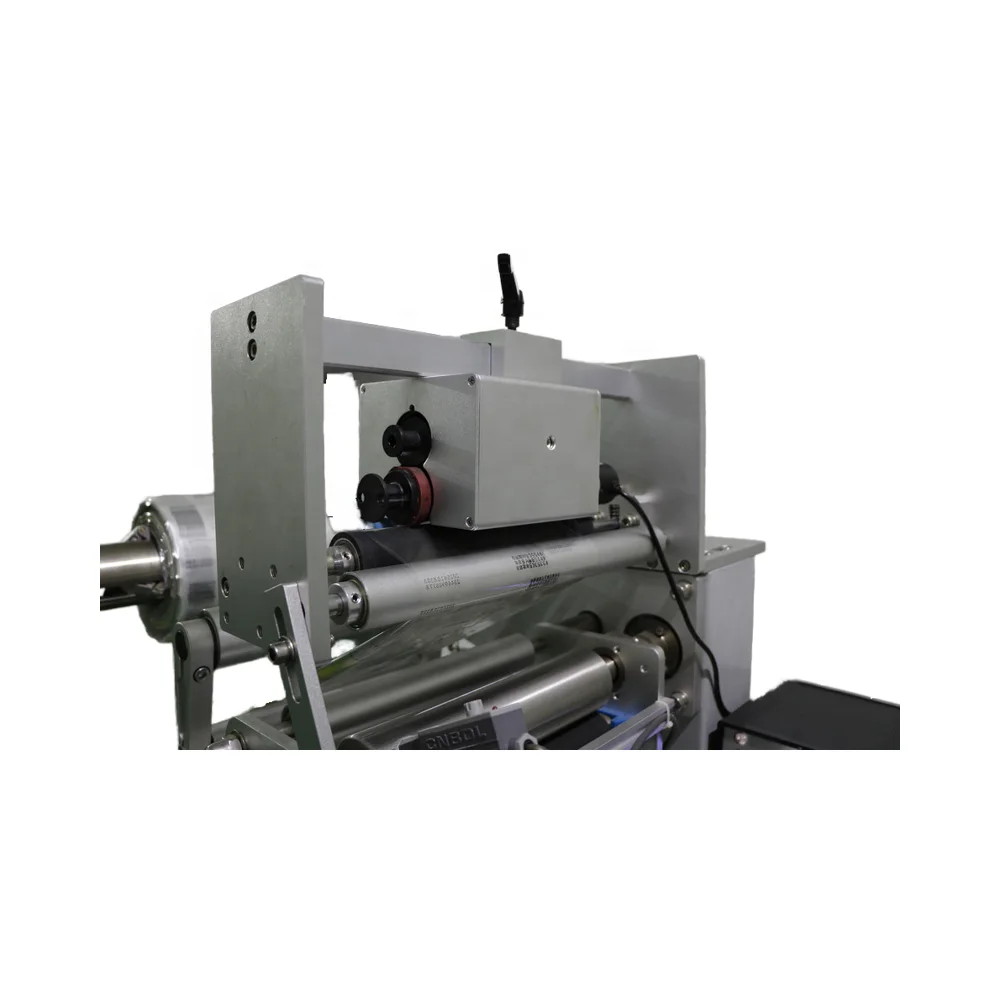

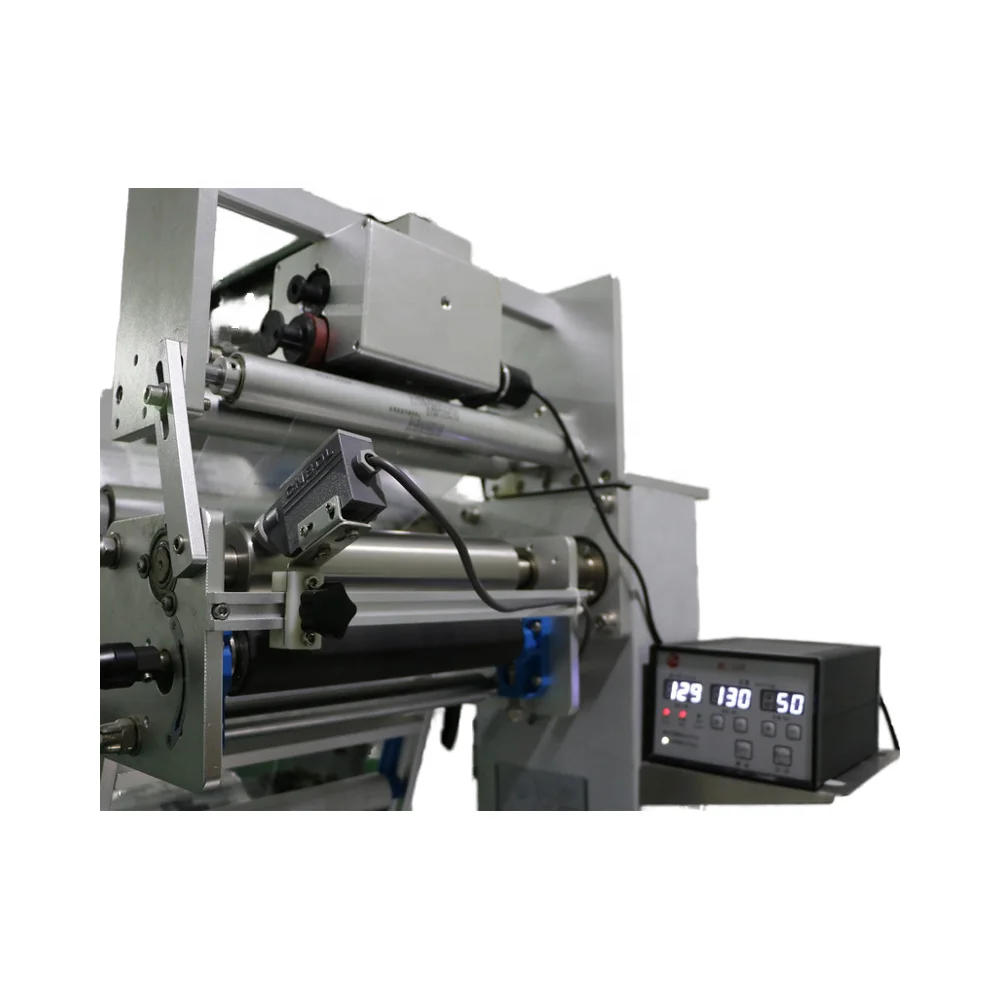

Considering various structures of packing machines, Hot Ink Roll Coders should be installed at the position which will not affect the machine operation based on the site condition, and the mounting bracket can be customized according to customers requirements.



2. Features

Double-roll design,reducing trouble in frequently changing rolls, hence improving efficiency.

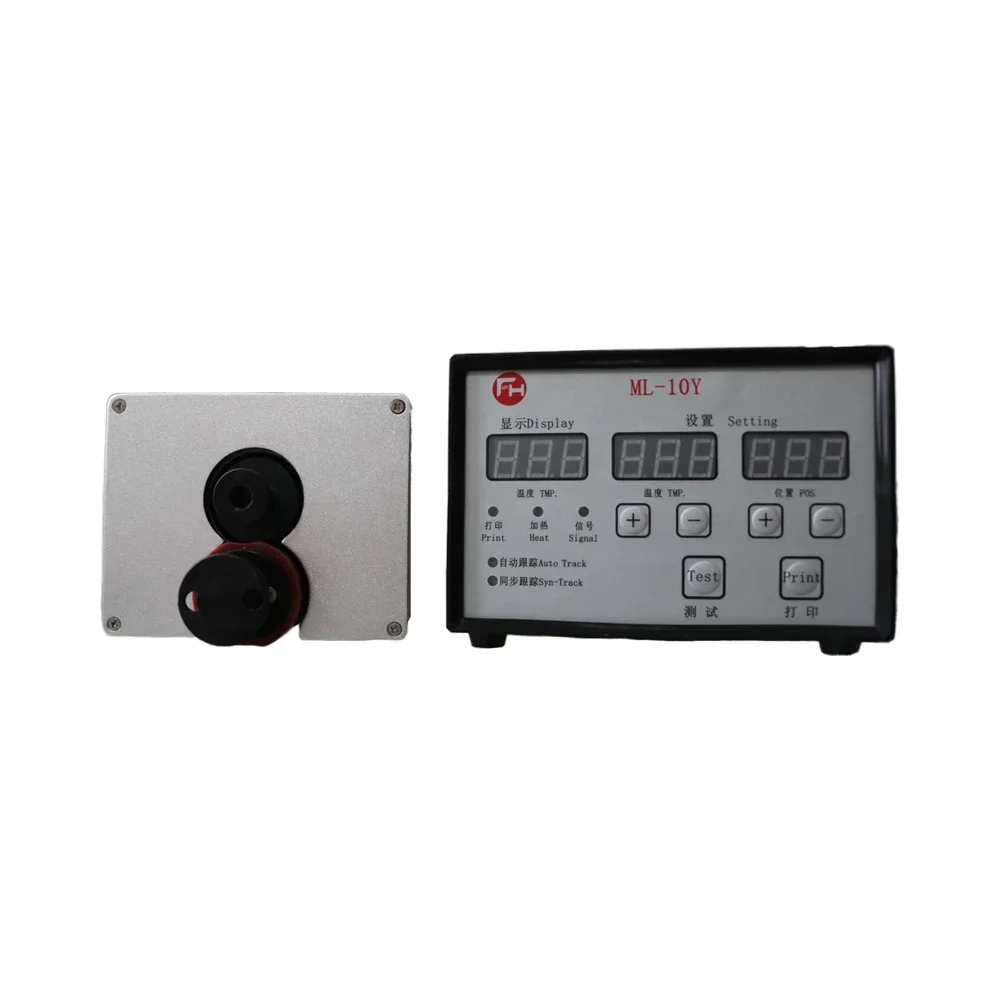

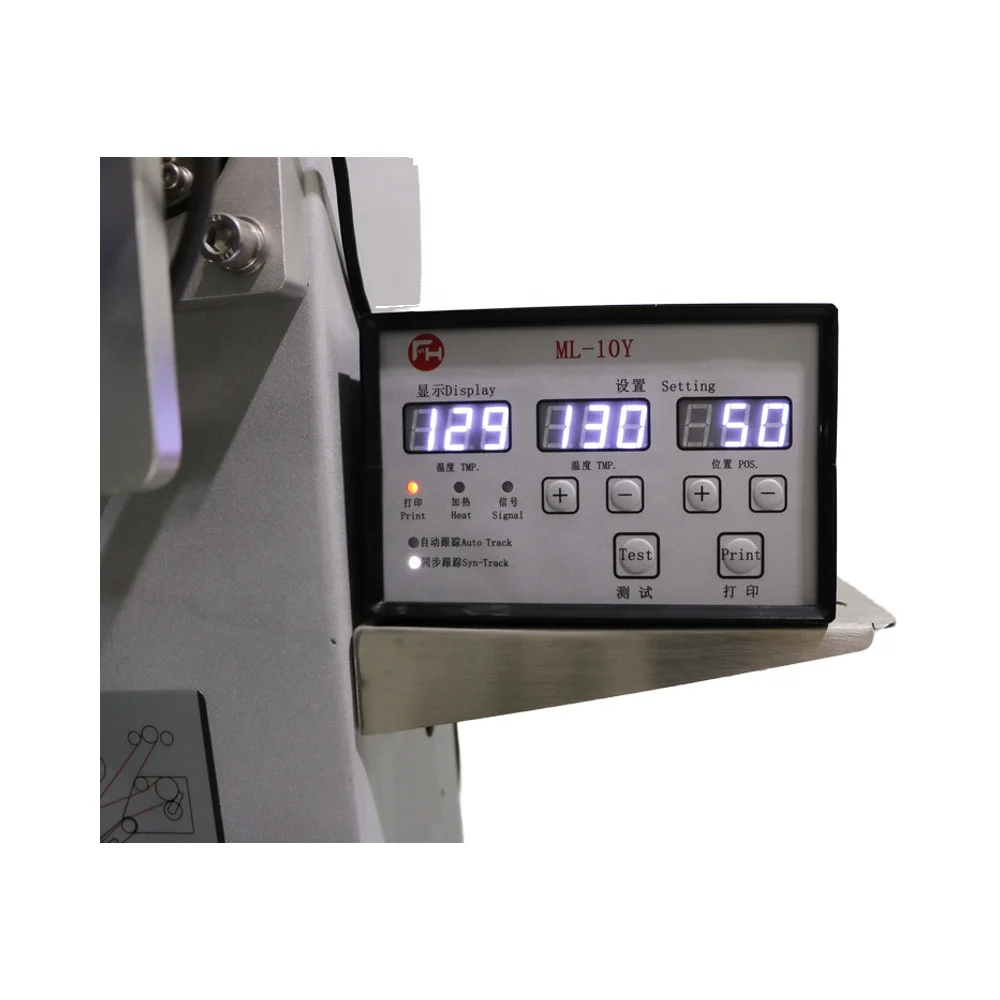

Industrial-grade panel with touch buttons guarantees smooth panel operation for more than 300,000 times.

Simple & Clear operation interface enables fast-learning process for customers.

Supporting various operating modes, such as NPN ,PNP, PLC etc.

Supporting different printing modes, such as automatic signal tracking and encoder modes.

Compact size, easy installation and simple operation.

It is specially designed for automatic feeding lines, suitable for applications of frequent shut-downs and fast speed changes.

Product parameters

² Printing Area                Axial≤40mm (perpendicular to feeding direction)

                                               Radial≤60mm (parallel to feeding direction)

² Printing Lines               T-typeAxial≤13 linesmax 20 characters per line

                                                                       R-typeRadial≤10 linesmax 13 characters per line

² Type Sizes                   T-type1.5 mm,2.0 mm,2.5 mm,3.0 mm(W) ×3.5mm(H)

                                               R-type3.5mm(W)×3.5,4.5,5.5mm(H)(Customized)

² Printing Speed                  ≤300times/min

² Linear Speed                     ≤35m/min

² Pouch Length                    ≥38mm(4-up printer)

                                               ≥75mm(2-up printer)

² Ink Rolls                     φ36×35mm(Standard size)

² Electricity                   AC220±10V,  50/60Hz

² Power                       130W,2Afuse

² Working Temperature      4℃-40℃

² Relative Humidity            10%-95%

² Weight                      Printing Unit: 2.0kg,   Controller: 1.0kg

² Outline Dimension         Printing Unit126mm×100mm×172mm(L×W×H)

         Controller161mm×180mm×105mm(L×W×H)
